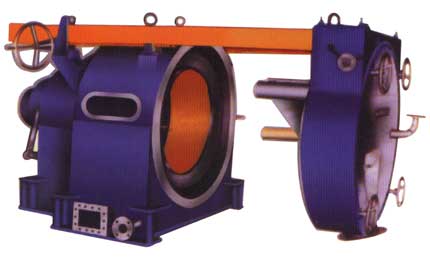

Horizontal Peeler Centrifuge For Starch
Peeler centrifuges are suitable for low concentration slurries with fine solids. Higher filtration area multiplied by higher ‘G’ Value ( ‘K’ Factor) gives optimum dryness of solids. As all operations - Feed - Wash - Drying - Discharge are done at full RPM of the basket, time & energy is saved and simple drive systems are required. They are manufactured with the best technology in the filed and gives long trouble free operational life. Also offered in GMP (Good Manufacturing Process) all stainless steel construction. Horizontal Peeler Centrifuge For Starch & known as Chemical Centrifuge or Industrial Centrifuge also.
Bearing Housing Assembly for Horizontal Peeler Centrifuge
The main shaft is fitted with a combination of cylindrical roller bearing, and angular contact ball bearings. The bearings are oil lubricated with oil circulating power station, which continuously circulates 1he oil throughout the operation of the centrifuging cycle. The bearing is housed in gas-tight construction, fitted with specially-designed PTFE lip seals.
Model |
Basket
Dia mm |
Capacity
Vol Ltrs. Charge Kgs. |
Drive HP |
RPM |
G. Value |
80 H |
810 |
70 |
90 |
25.0 |
1200 |
680 |
100 H |
1020 |
110 |
120 |
40.0 |
1200 |
800 |
120 H |
1210 |
180 |
200 |
75.0 |
1160 |
850 |
140 H |
1410 |
470 |
500 |
100.0 |
1000 |
780 |
|
