HORIZONTAL PHARMA PEELER CENTRIFUGE

Peeler Assembly of Horizontal Pharmaceutical Peeler Centrifuge

The peeler of the centrifuge is actuated by hydraulic cylinder, the peeler shaft assembly, having blade and mounting arrangement; designed and located over the discharge chute, so that the scraped cake directly falls in the chute and gets discharged. The peeler plow assembly and discharge chute have a high polished surface, with no dead corners for solid accumulations. Horizontal Pharma Peeler Centrifuge known as Peelar Centrifuge & Industrial Centrifuge also.

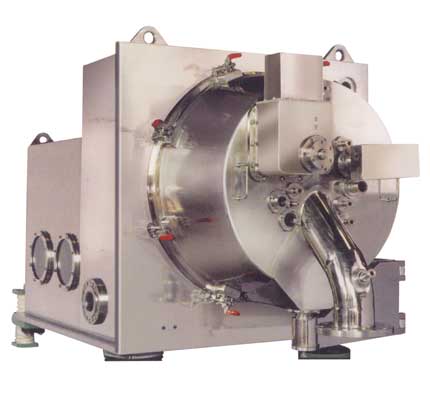

Horizontal Pharma Peeler Centrifuge

Bearing Housing Assembly of Horizontal Pharma Peeler Centrifuge

The main shaft is fitted with a combination of cylindrical roller bearing, and angular contact ball bearings. The bearings are oil lubricated with oil circulating power station, which continuously circulates 1he oil throughout the operation of the centrifuging cycle. The bearing is housed in gas-tight construction, fitted with specially-designed PTFE lip seals. It's used in many Industries. Some Features of Peelar Centrifuge are given here.

Model Basket
Dia mm
Basket
Depth mm
Capacity
Vol Ltrs. Charge Kgs.
Drive HP Max. Rotation Speed
78 H 630 320 40 50 10 2400
99 H 800 400 80 100 20 1900
1180 H 1000 500 170 215 30 1500
